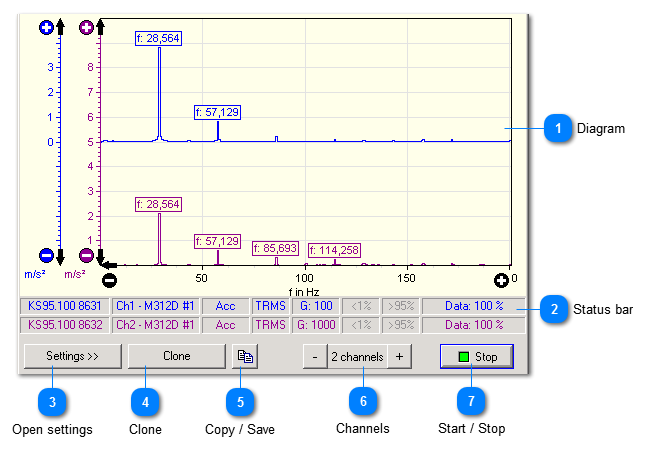

1. Diagram

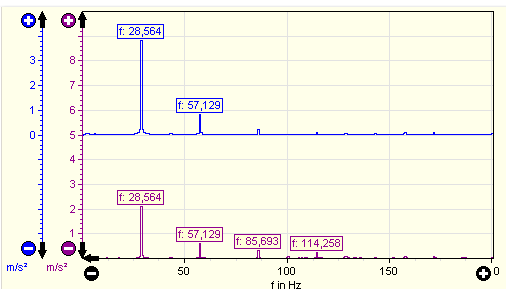

The magnitudes at the different frequencies are displayed in the diagram. One curve is displayed for each measuring channel. Each curve has its own y-axis which can be scaled and scrolled independently.
Scaling (spreading and compressing the measurement curve) is carried out by means of the buttons and . Scrolling is carried out by clicking on the scroll arrows. The display control panel contains more settings for the measurement chart.
By means of the mouse, the measurement chart can be zoomed or scrolled on the frequency axis. The chart is scrolled with the left mouse button held down. By holding down the right mouse button, you choose an area to be zoomed.

Status bar

2. Status bar
The status bar indicates the most important settings for the respective channel of the instrument:

Open settings

3. Open settings
Opens and closes the setup menu.


4. Clone
Opens a new window with the same settings which can be modified.

Copy / Save

5. Copy / Save
Copies the diagram data into the clipboard or saves it on hard disk. Different file formats can be chosen.


6. Channels
Increase or decrease the number of measuring channels (and curves). One to four channels are possible.

Start / Stop

7. Start / Stop
Starts and stops measurement.
