PC Vibration Measurement System VibroMetra

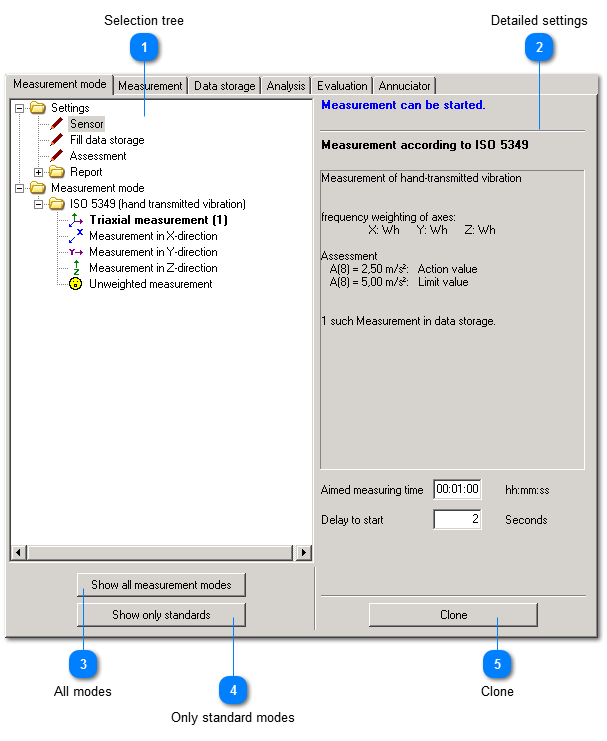

Measuring mode


Measuring mode
1

Selection tree

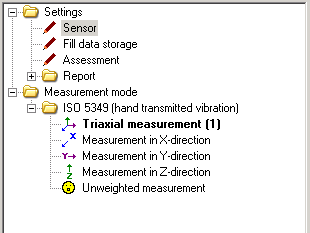

1. Selection tree
In the selection tree, you find the setting options and measurement modes in a clearly arranged way.
A measurement mode has to be selected before starting a measurement.

Depending on the selected measurement mode or setting option, the detail and configuration area on the right side changes.

By means of the buttons Show all measurement modes and Show only standards the selection tree can be closed or opened completely.
2

Detailed settings

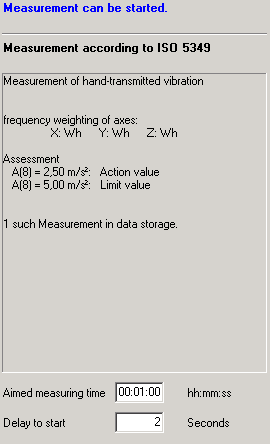

2. Detailed settings
The detail and configuration area changes depending on the selection in the selection tree. Here you can configure:
3

All modes


3. All modes  Opens the complete selection tree.
4

Only standard modes


4. Only standard modes  Only shows ISO 5349 settings.
5

Clone


5. Clone
Opens a new window with the same settings which can be modified.

Content of Measuring mode

Sensor settings
Data storage settings
Evaluation settings
Report templates
Configuration options for the measuring mode
