Manfred Weber
Metra Mess- und Frequenztechnik in Radebeul e.K.
PC Vibration Measurement System VibroMetra

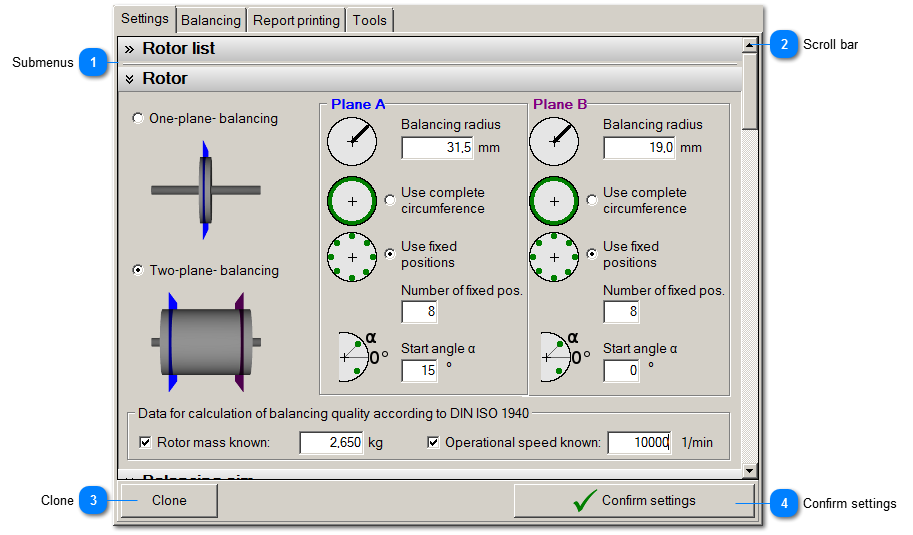

Settings


Settings
1

Submenus


1. Submenus
Before balancing, it is recommended to check all settings of these submenus from the top to the bottom.
2

Scroll bar


2. Scroll bar
Scroll up and down to open the submenus.
3

Clone


3. Clone
Opens a new window with the same settings which can be modified in a different way.
4

Confirm settings


4. Confirm settings
Click this button when you have finished all settings. This is a precondition for balancing. After pressing this button all settings will be crossed out and blocked until you press the Edit settings button.
