VibroMetra User Manual

VM-BAL (+)


VM-BAL is intended for field balancing in one or two planes. Ideally, the rotor is balanced directly in its regular operating condition.

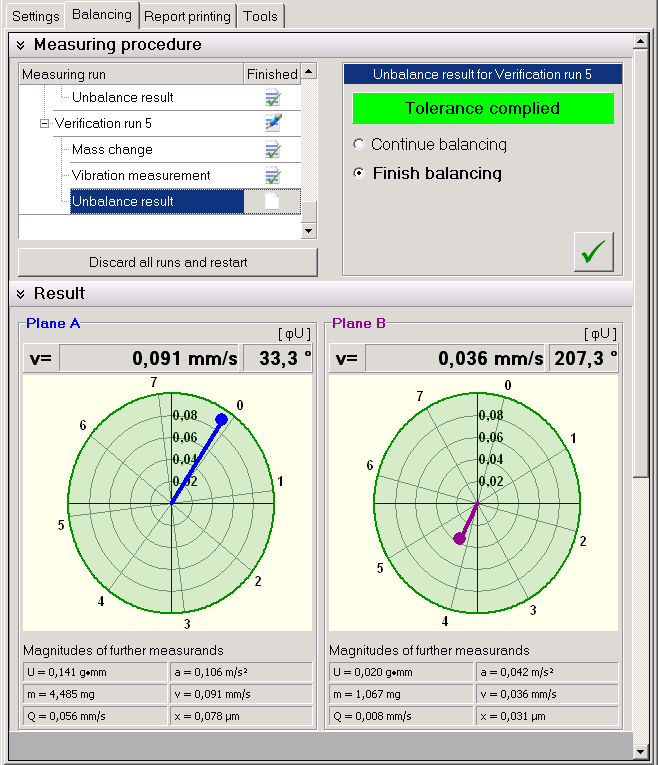

VM-BAL safely guides the user through all steps of setup and operation. Operations and results are clearly displayed as graphics.

Special features for high balancing efficiency are:
  • To avoid erroneous balancing at rotation speeds near the rotor resonance VM-BAL provides instructions for finding an optimum rotation speed after a first test run.
  • VM-BAL calculates the optimum test mass.
  • The test mass can be left at the rotor during balancing. VM-BAL will consider it in its calculations, if desired.
  • Drilling, milling, adding or removing mass, sliding blocks, set screws, etc. - VM-BAL offers 8 corrections methods.
  • Incomplete balancing sessions can be saved and reloaded to be continued later.
  • Only a few mouse clicks are needed to produce a balancing report.
