VM-FFT 3D

VibroMetra license for waterfall frequency analysis

  • Useful tool for run-up and coast-down analysis to evaluate rotation speed dependent vibration components and resonances

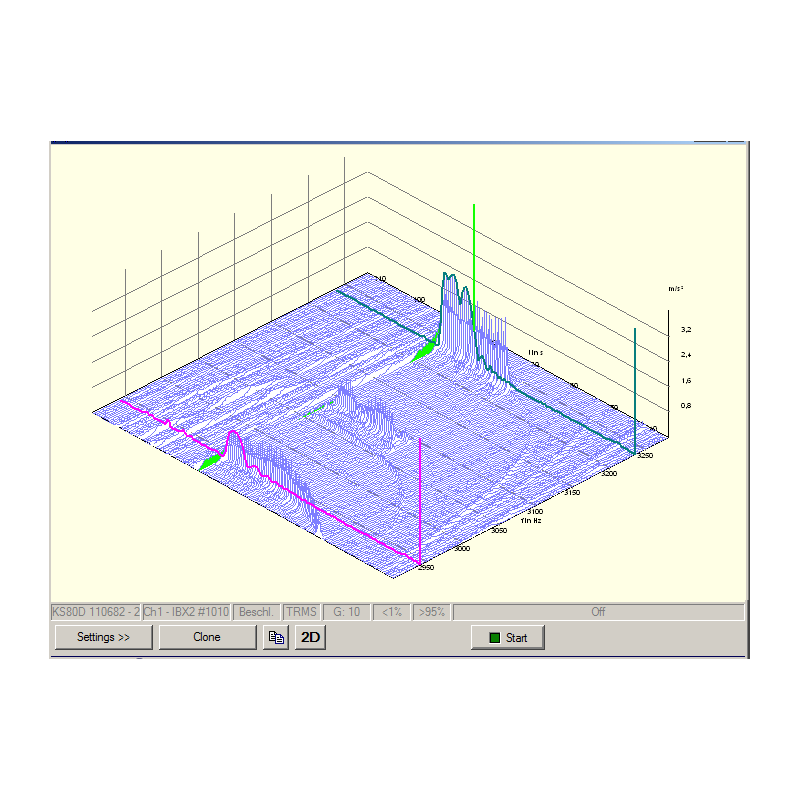

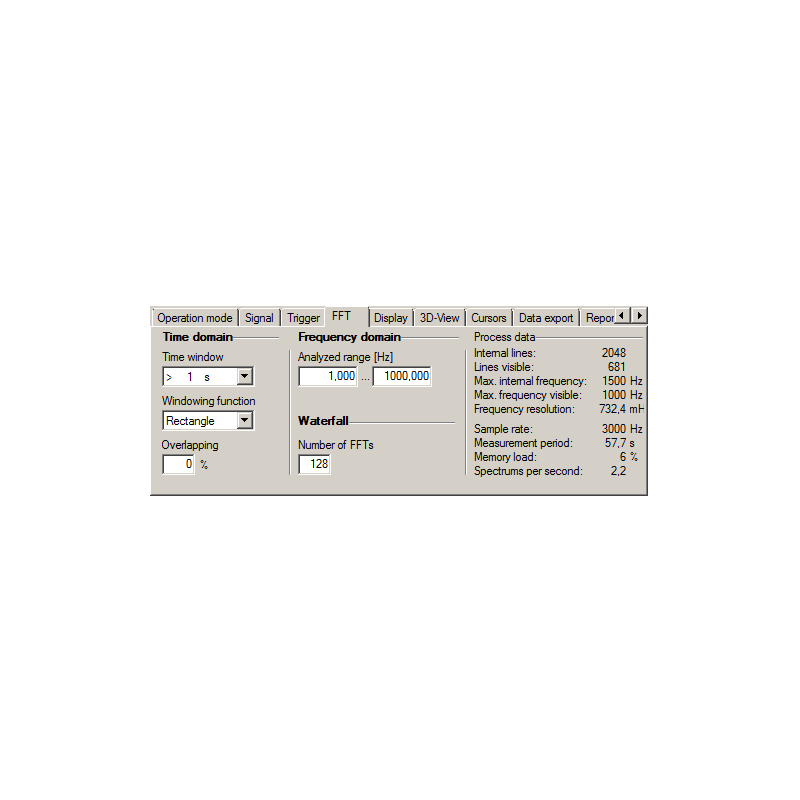

  • Display of multiple spectra over time (waterfall / 3D)

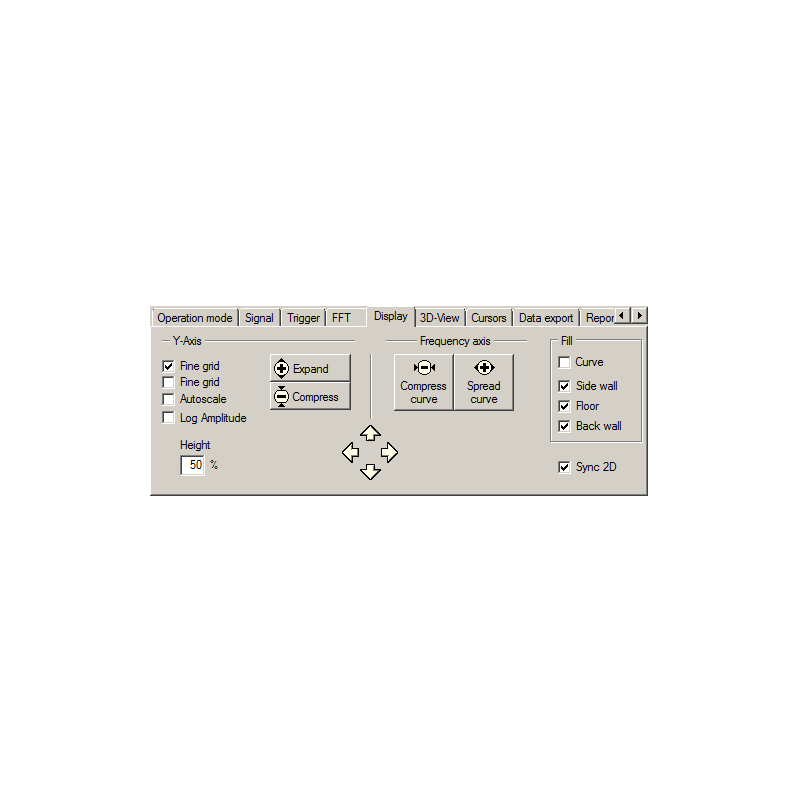

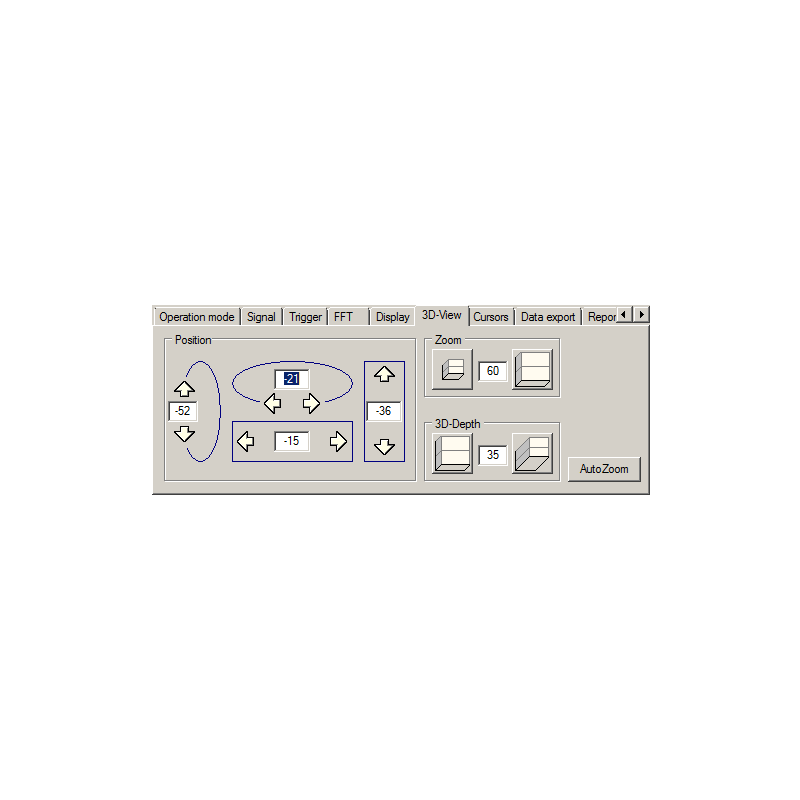

  • Wide range of rotate, tilt and zoom functions
  • Alternatively to the waterfall diagram (3D) you can switch to the classic 2D representation
  • Calculates the spectrum of vibration acceleration, with FFT 3D+ also velocity and displacement

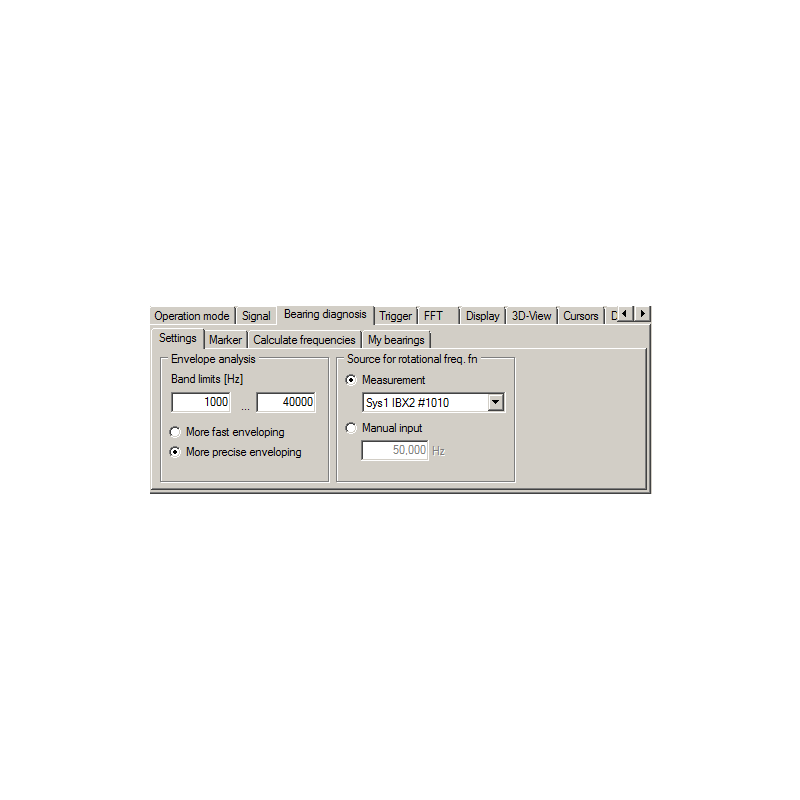

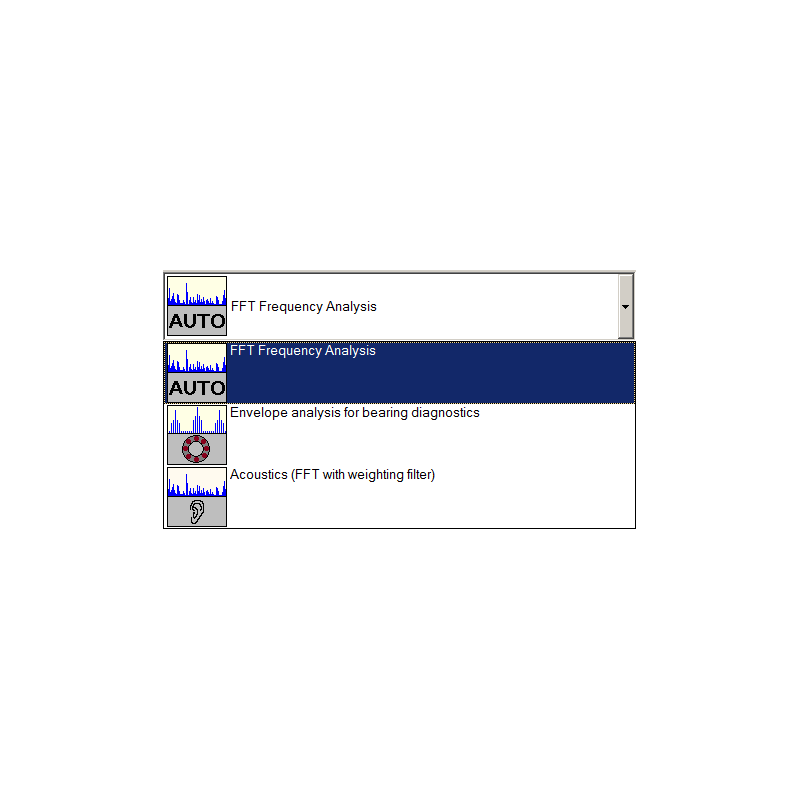

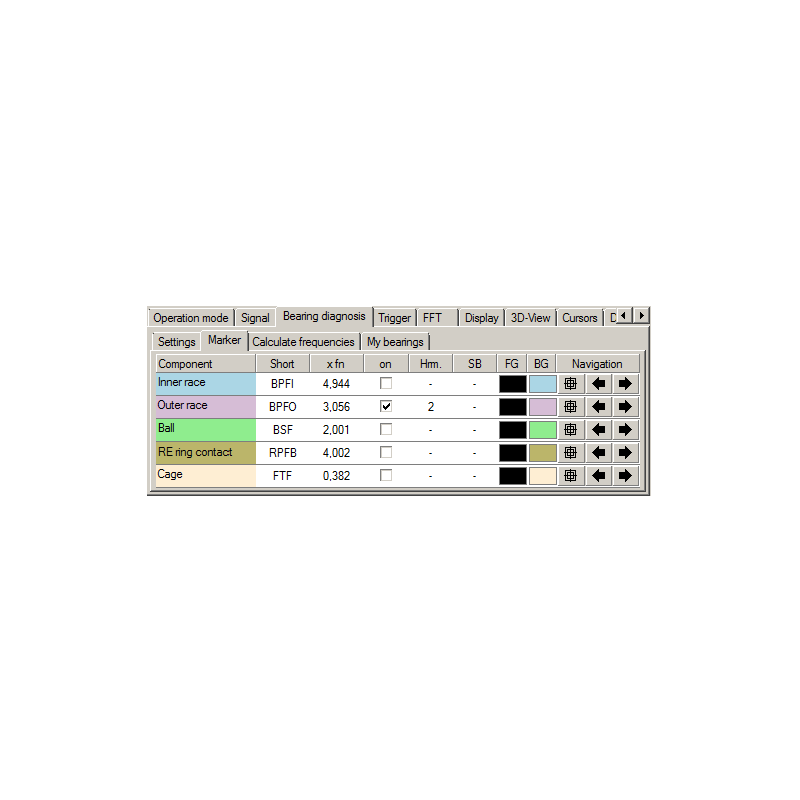

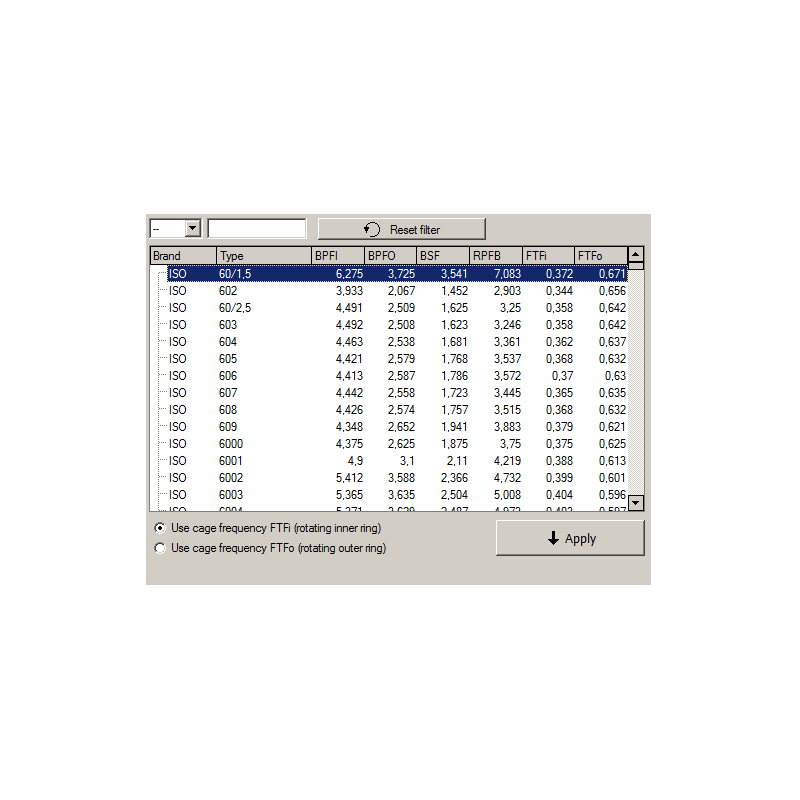

  • VM-FFT 3D+: Envelope spectrum, roller bearing analysis, acoustic weightings

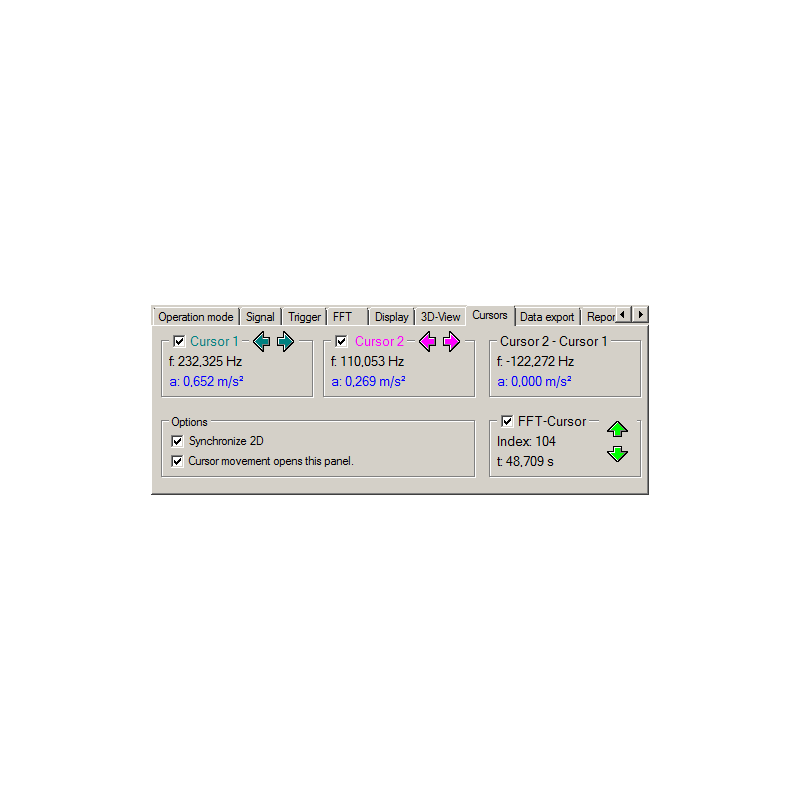

  • Two cursors for displaying frequency and amplitude with snap function
  • Up to four signals in one window
  • By means of the clone function, up to four VM-FFT 3D with different settings can measure simultaneously

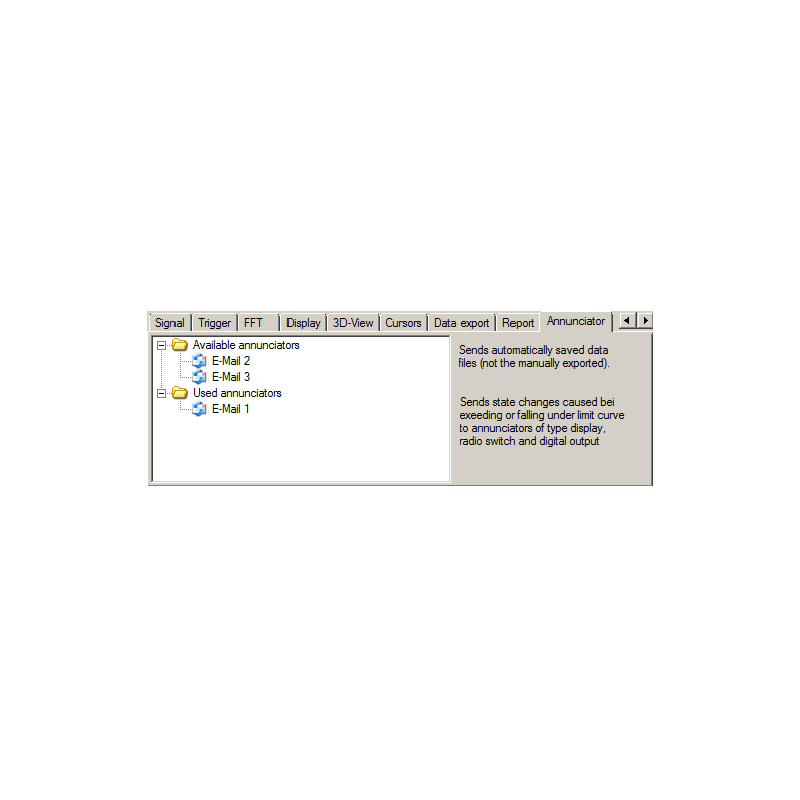

  • External signaling devices can be controlled
  • Offline measurement possible
  • License key for activating the selected VibroMetra instrument
  • 1 license key = 1 measuring channel

PLEASE NOTE:

The license is permanently assigned to the serial number of the M312B used and is stored directly on the device.
The serial number and desired measurement channel (Ch1/Ch2) must be specified at the purchase.
