VM22

Vibration Meter

Measurement of running smoothness on rotating machines and reciprocating machines in accordance with ISO 20816-1, ISO 10816-6, IEC 60034-14 etc.
Trend display
IEPE Accelerometer KS82L with magnetic base for quick and easy coupling to the measurement object
Electronic measuring point recognition with VMID measuring points via the sensor base simplifies workflow with measuring routes.
USB interface
Handy pocket size

Measuring range acceleration	–
Measuring range velocity	0.1 .. 1000 mm/s
Measuring range displacement	–
Frequency range acceleration	–
Frequency range velocity	10 .. 1000 Hz
Frequency range displacement	–
RMS	yes
Peak value	Peak
Crest factor	–
Bearing coefficient K(t)	–
Frequency analysis (FFT)	–
Main frequency	–
Headphone connector	–
Measurement memory	16 000 measurements
USB Port	yes

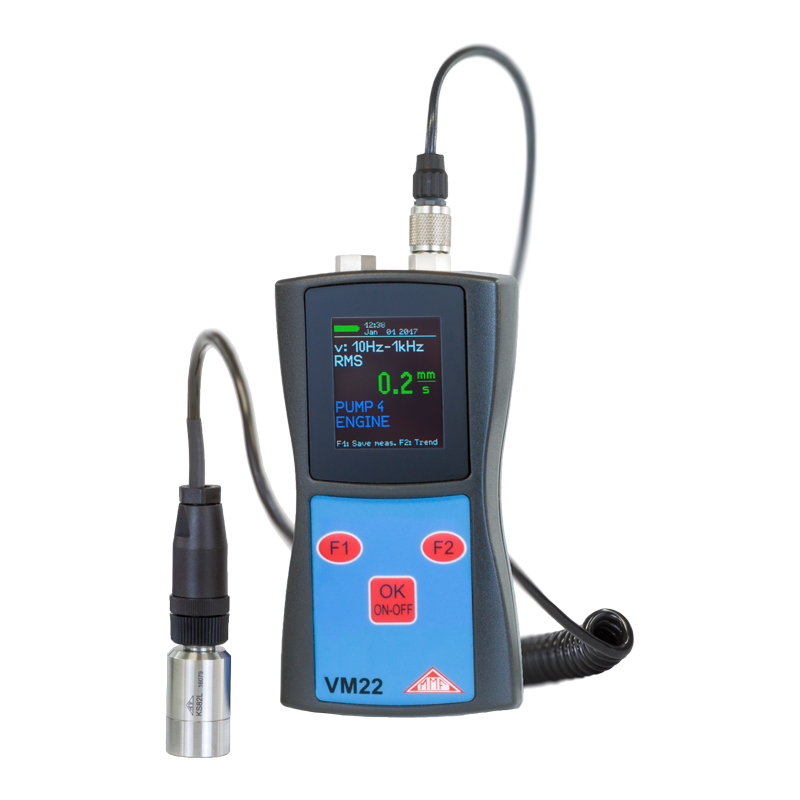

Vibration Meter VM22
Accelerometer KS82L with spiral cable
USB cable
VMID Measuring Point (sample)
Transport case
2 years warranty

Note: VMID Measuring Points ensure defined coupling and automatic measuring point detection within measuring routes. A sample is included—additional measuring points are available as an option.

Downloads

Accessories for this product

VMID Measuring Point

Measuring Points with ID Identification for VM2x Series

Related products

	VM22	VM23	VM24	VM25
Measuring range acceleration	-	-	0.1 .. 240 m/s²	0.1 .. 240 m/s²
Measuring range velocity	0.1 .. 1000 mm/s	0.1 .. 1000 mm/s	0.1 .. 1000 mm/s	0.1 .. 1000 mm/s
Measuring range displacement	-	0.01 .. 60 mm	0.01 .. 60 mm	0.01 .. 60 mm
Frequency range acceleration	-	-	0.2 .. 10 000 Hz, 3 .. 1000 Hz, 1000 .. 10 000 Hz	0.2 .. 10 000 Hz, 3 .. 1000 Hz, 1000 .. 10 000 Hz
Frequency range velocity	10 .. 1000 Hz	2 .. 100 Hz, 2 .. 1000 Hz, 10 .. 1000 Hz	2 .. 1000 Hz, 10 .. 1000 Hz	2 .. 1000 Hz, 10 .. 1000 Hz
Frequency range displacement	-	2 .. 300 Hz, 2 .. 1000 Hz, 3 .. 60 Hz, 3 .. 200 Hz, 10 .. 1000 Hz	5 .. 200 Hz	5 .. 200 Hz
RMS	yes	yes	yes	yes
Peak value	Peak	Peak-to-Peak	Peak	Peak
Crest factor	-	-	-	yes
Bearing coefficient K(t)	-	-	-	yes
Frequency analysis (FFT)	-	-	-	125 lines
Main frequency	-	yes	-	-
Headphone connector	-	-	-	yes
Measurement memory	16 000 measurements	16 000 measurements	16 000 measurements	16 000 measurements
USB Port	yes	yes	yes	yes
