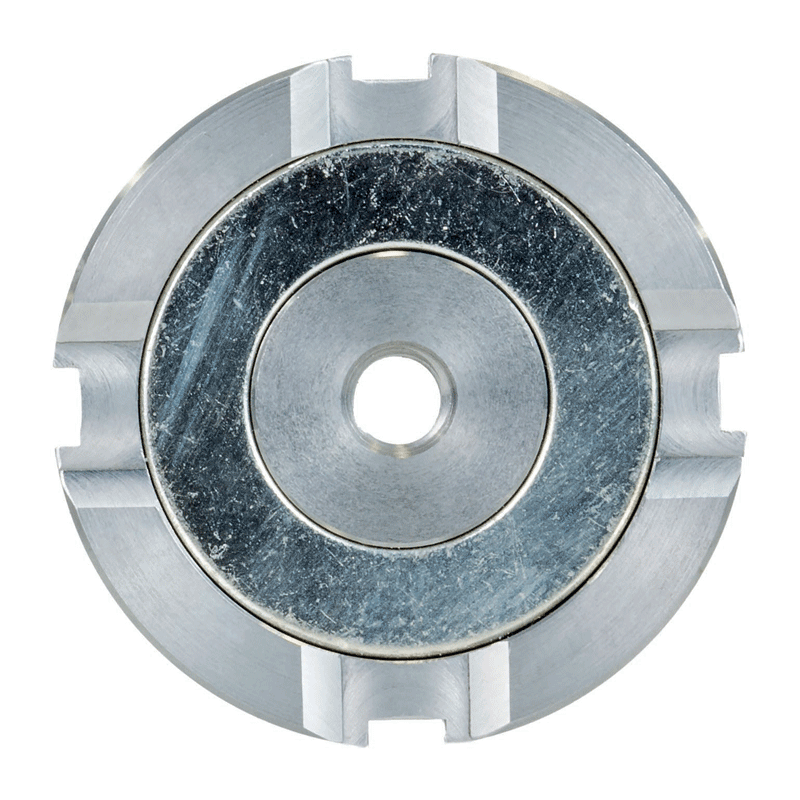

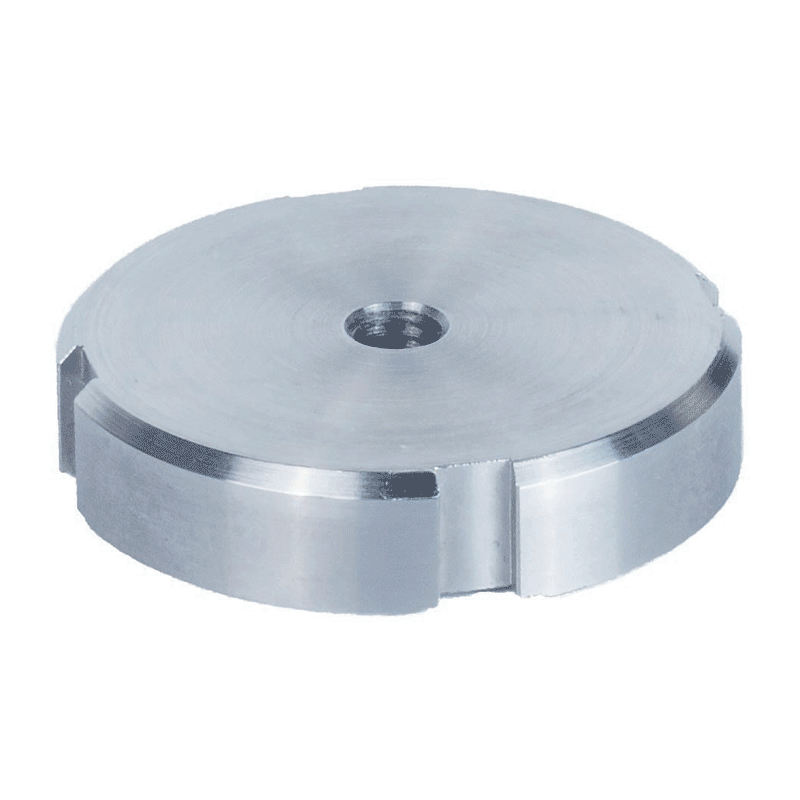

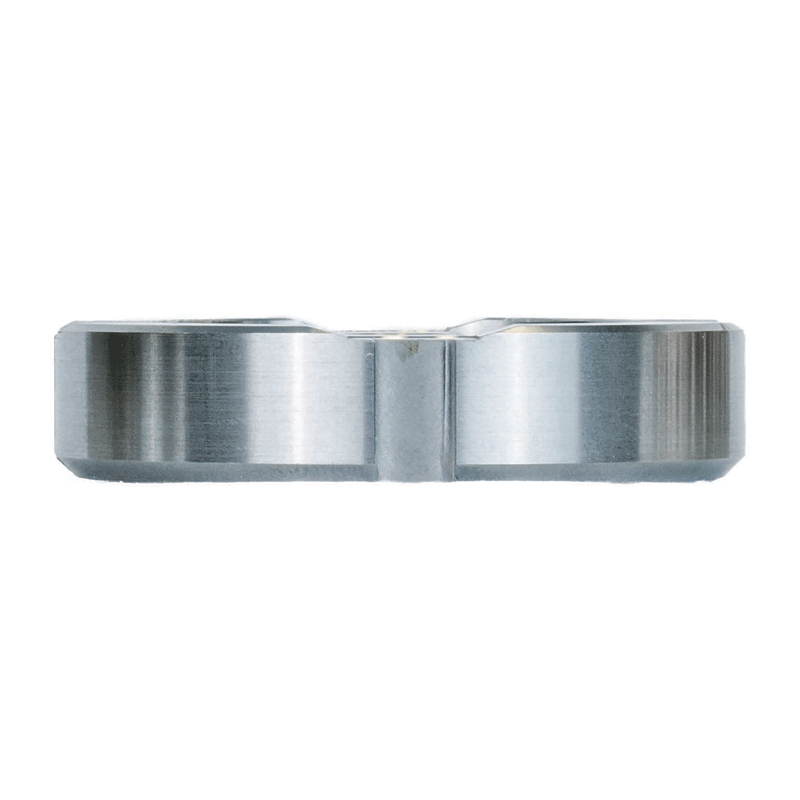

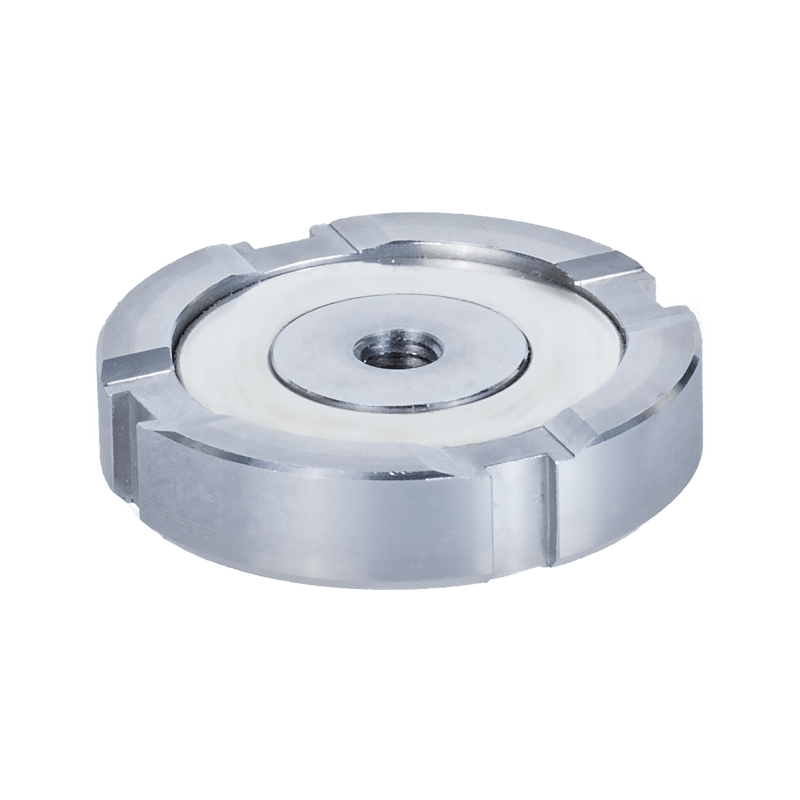

Rare-earth magnetic base for flat and curved surfaces, M8 (fem.)

  • Magnetic base for sensors with M8 threads, ideal for the KS823B sensor
  • for flat and curved surfaces

Caution: Risk of injury and sensor damage by shock acceleration.

Slowly place the magnet over the edge – do not let it snap!

Mounting thread

M8 (female)
Mounting Surface

flat, curved (D>70 mm)
Pulling force

250 N
Dimensions (mm)

54 (D) x 12 (H)
Mass

185 g
Material

Stainless steel
Maximum temperature

80 °C

1 PU = 1 piece of the item

Downloads

Suitable products

  • 043

    Stud bolt M8 x 10

  • KS823B

    High Sensitivity Triaxial Accelerometer

    • Related products

    508 008 108 208 308 408 608 708 2208 8508
    Mounting thread M8 (female) M5 x 3 M3 x 1.4 M8 x 4 M3 x 2.7 M4 (female) M5 x 3 M5 x 3 M8 x 5 KS85 thread flange
    Mounting Surface flat, curved (D>70 mm) flat flat flat flat flat curved (D>50 mm) flat flat, curved (D>20 mm) flat
    Pulling force 250 N 150 N 20 N 100 N 150 N 100 N 100 N 30 N 110 N 75 N
    Dimensions (mm) 54 (D) x 12 (H) 22 (D) x 8 (H) 10 (D) x 5 (H) 30 (D) x 11 (H) 22 (D) x 8 (H) 30 (D) x 11 (H) 66 x 44 x 12 15 (hex) x 7,5 (H) 26 (W) x 17.5 (H) M23x1 (D) x 7,5 (H)
    Mass 185 g 20 g 2.5 g 65 g 20 g 64 g 112 g 11 g 58 g 19 g
    Material Stainless steel Stainless steel Stainless steel Stainless steel Stainless steel Stainless steel Stainless steel Stainless steel Stainless steel Stainless steel
    Maximum temperature 80 °C 120 °C 120 °C 120 °C 120 °C 120 °C 120 °C 120 °C 120 °C 120 °C
