PC Vibration Measurement System VibroMetra

Measurement mode

Measurement mode
1

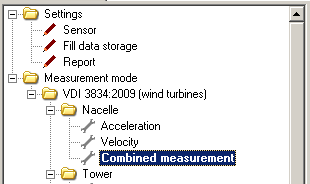

Selection tree


1. Selection tree
The selection tree shows setting options and measurement modes in a clearly arranged way.
A measurement mode has to be selected before starting a measurement.

Depending on the selected measurement mode or setting option, the detail and configuration area on the right side changes.

When selecting combined measurement, different measurement modes which have to carried out on the same measuring point are carried out simultaneously.

By means of the buttons Show all measurement modes and Show only standards the selection tree can be closed or opened completely.
2

Detail and cofiguration area


2. Detail and cofiguration area
The detail and configuration area changes depending on the selection in the selection tree. Here you can configure:
3

Show all modes

3. Show all modes
This button opens all measurement modes in the selection tree.
4

Show only standards

4. Show only standards
This button only shows the top level of measurement modes in the selection tree.
5

Clone

5. Clone
This button generates an additional VM-WIND with the same settings. The newly generated instrument can be configured freely.

Content of Measurement mode

Sensor settings
Data storage settings
Report templates
Configuration options for the measurement mode
