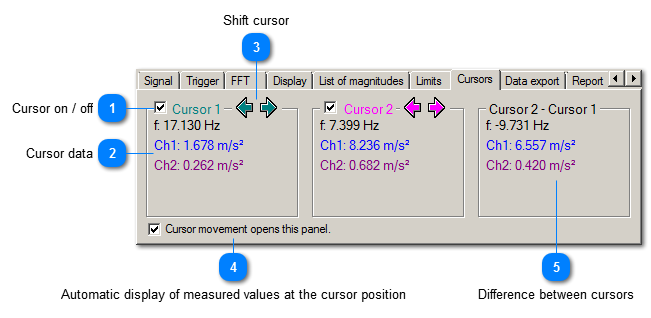

You can activate 2 cursors and move them on the frequency axis. The measured values at the marked frequency are displayed.
 Cursor on / off
|
|
Activates the cursor function
| |
|
 Cursor data
|
|
Frequency and magnitude at the cursor position.
| |
|
 Shift cursor
|
|
Shift the cursor in the direction of the time axis. Shifting is also possible by dragging the cursor line directly.
| |
|
 Automatic display of measured values at the cursor position
If you activate the automatic opening of the cursor control panel, the measured values at the cursor position are displayed immediately in case of cursor movement.
|
|
 Difference between cursors
|
|
Shows the difference of magnitude and frequency between the two cursors.
| |
|
